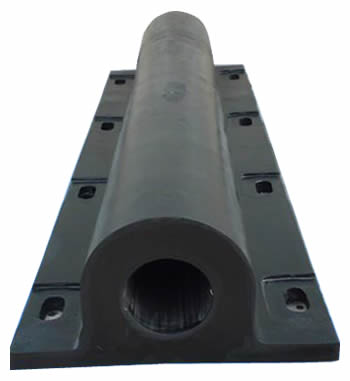

Wing Fenders - Improved D Rubber Fenders

Wing fenders are improved D fenders with two wings. They are compression moulded and generally used on tugs, boats, ships, quays, piers and warehouses, etc. The wing design extends the service life of wing fenders as traditional D fenders are is anchored in the middle which make them easy to break away.

Features:

• Stronger with longer lifespan.
• Secure the ships and vessels that berth smoothly.
• Bolt holes on wings - easier to install and maintain comparing with D fenders.
• Superb resistance against sea water, ozone, aging and ultra violet rays.
• Suitable to be used at small ports or harbors.

Types & specifications:

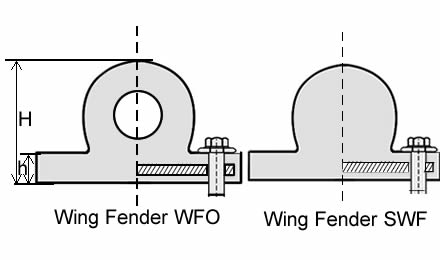

Wing fenders are available in two main types - that is solid wing fender (SWF) and wing fender with O-shaped chamber (WFO) as shown in the picture. Meanwhile, custom sizes and designs of wing fenders also can be produced as your request.

Type	H	W	Main specification (mm)									Performance
			L	c	h	A	a	B	b	Q	P × n	R	E
WF-1	280	540	1000	430	40	165	120	82	41	150	700	371	14
WF-2			1500	430	40	165	120	82	41	150	600	557	21
WF-3			2000	430	40	165	120	82	41	145	570	742	28
WF-4			2500	430	40	165	120	82	41	150	550	928	35
WF-5			3000	430	40	165	120	82	41	150	540	1130	42
WF-6	300	600	1000	490	40	165	120	90	45	150	700	441	18
WF-7			1500	490	40	165	120	90	45	150	600	661	26
WF-8			2000	490	40	165	120	90	45	145	570	882	35
WF-9			2500	490	40	165	120	90	45	150	550	1103	44
WF-10			3000	490	40	165	120	90	45	150	550	1350	54
R = Reaction force (KN); E = Energy absorption (KJ); Tolerance: ±10%

Installation:
Wing fenders can be easily bolted between two steel angles or glued on the dock using special sealants. Mounting holes can be punched on wing fenders as your requirements; meanwhile, wing fenders with specific radius can be supplied to be mounted around a bow or stern of a shape.
