Why Chooses W & M Fenders as boat bumpers?
W & M fender is one of the most effective bumpers for protecting tugboats by means of absorbing excessive bumps and shocks. It is generally fastened to the stern and bow of boats in conjunction with tugboat fenders.
As its name implied, W & M fenders feature W-shaped or M-shaped profile with grooves on the top of fenders for extra grip and low pressure while pushing. Its special structure makes the fender much easier to install using guide rods whether at large or small radius.
Applications:
- Ocean-going tugboats
- Workboats.
- Icebreakers.
- Large harbor tugboats.
- Corners of quays.
- Bridge and pile protection.
- Barges.
- Pontoons.
Types & specifications:
Standard W fenders
| Standard W fenders (mm) | ||||||
|---|---|---|---|---|---|---|
| Type | W | H | A | B | C | Weight (Kg/m) |
| WRFA-1 | 320 | 200 | 100 | 180 | 280 | 51 |
| WRFA-2 | 400 | 250 | 110 | 220 | 350 | 81 |
| WRFA-3 | 480 | 300 | 135 | 265 | 420 | 120 |
| WRFA-4 | 500 | 360 | 125 | 265 | 390 | 156 |
| WRFA-5 | 500 | 450 | 90 | 250 | 420 | 180 |
M type rubber fenders
| M type fenders (mm) | |||||||
|---|---|---|---|---|---|---|---|
| Type | W | H | A | B | C | D | Weight (Kg/m) |
| WRFA-2 | 400 | 200 | 50 | 150 | 40 | 23 | 56 |
| WRFA-3 | 500 | 250 | 60 | 190 | 50 | 27 | 89 |
| WRFA-4 | 600 | 300 | 70 | 230 | 60 | 33 | 132 |
| WRFA-5 | 800 | 400 | 95 | 305 | 80 | 44 | 235 |

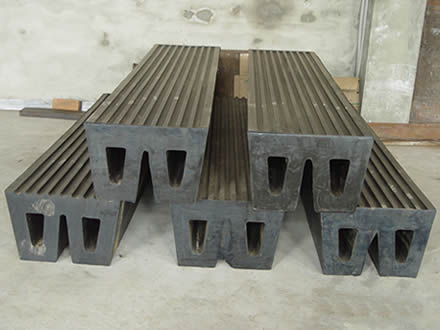

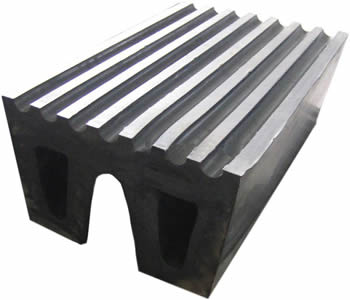

Standard W type rubber fenders with grooves on the top for extra grip

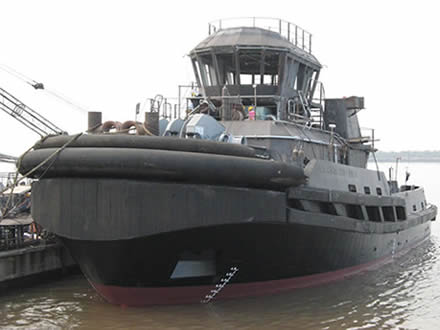

Standard W fenders are mounted on the bow and stern of the vessel.
